Re: Front engined VW

Post by railroad bob » Fri Jun 19, 2015 4:36 am

just went thru your build at the link...

I am floored by what you are doing. Not sure even HOW you know how to mix and match all those parts, or
even make it all work together.

Serious skills there.
Alaska - Land of the Individual and Other Endangered Species
An Armed Society is a Polite Society,...
Politicians Prefer Unarmed Peasants
Principle of 7 P's: Proper Prior Planning Prevents Piss Poor Performance

DeathBySnuSnu
Lurker
Posts: 89
Joined: Mon Jan 13, 2014 9:08 pm
SELF INTRODUCTION: A backwoods redneck from way down south.
Own a custom manufacturing company.
Ain't scared to build anything that I can dream up.
Have had a motorcycle since I was 10, 52 now.
Currently ride a handbuilt trike

Re: Front engined VW

Post by DeathBySnuSnu » Fri Jun 19, 2015 8:04 am

I like the smaller motorcycle sized trikes.

This thing is packed in there to make it this small.
Last edited by DeathBySnuSnu on Fri Sep 29, 2017 10:00 pm, edited 1 time in total.

DeathBySnuSnu
Lurker
Posts: 89
Joined: Mon Jan 13, 2014 9:08 pm
SELF INTRODUCTION: A backwoods redneck from way down south.
Own a custom manufacturing company.
Ain't scared to build anything that I can dream up.
Have had a motorcycle since I was 10, 52 now.
Currently ride a handbuilt trike

Re: Front engined VW

Post by DeathBySnuSnu » Fri Jun 19, 2015 8:11 am

railroad bob wrote:just went thru your build at the link...

I am floored by what you are doing. Not sure even HOW you know how to mix and match all those parts, or
even make it all work together.

Serious skills there.

And that is basically just the engine.
The trans and everything else is a mix match hodge podge of stuff that ain't supposed to fit together.
When the original build happened was before smart phones and always having a camera in your pocket. I have just a few pics of the original build towards the end, I got me one of those new fangled digital cameras that had just came out.

DeathBySnuSnu
Lurker
Posts: 89
Joined: Mon Jan 13, 2014 9:08 pm
SELF INTRODUCTION: A backwoods redneck from way down south.
Own a custom manufacturing company.
Ain't scared to build anything that I can dream up.
Have had a motorcycle since I was 10, 52 now.
Currently ride a handbuilt trike

Re: Front engined VW

Post by DeathBySnuSnu » Sat Jul 16, 2016 10:18 pm

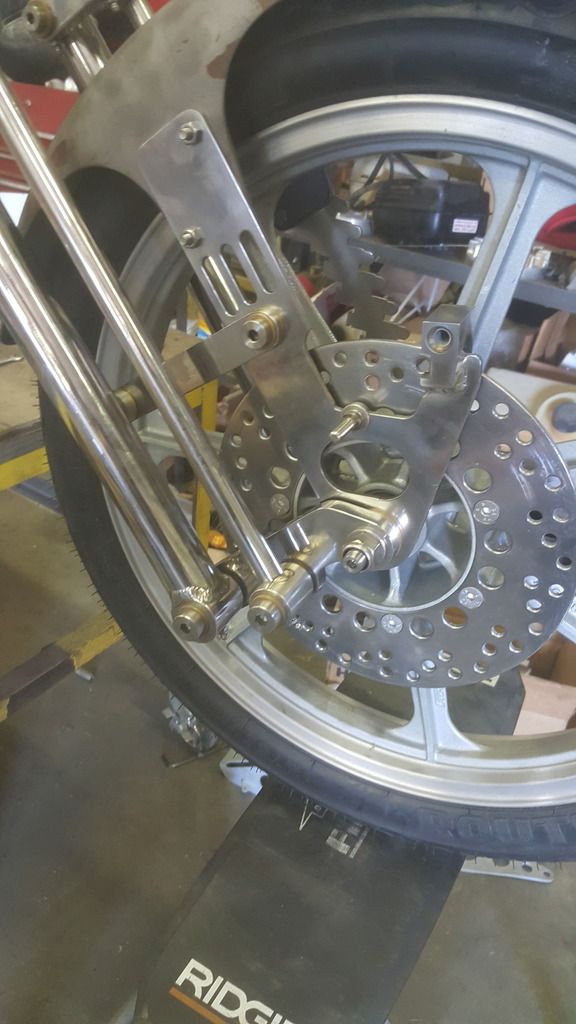

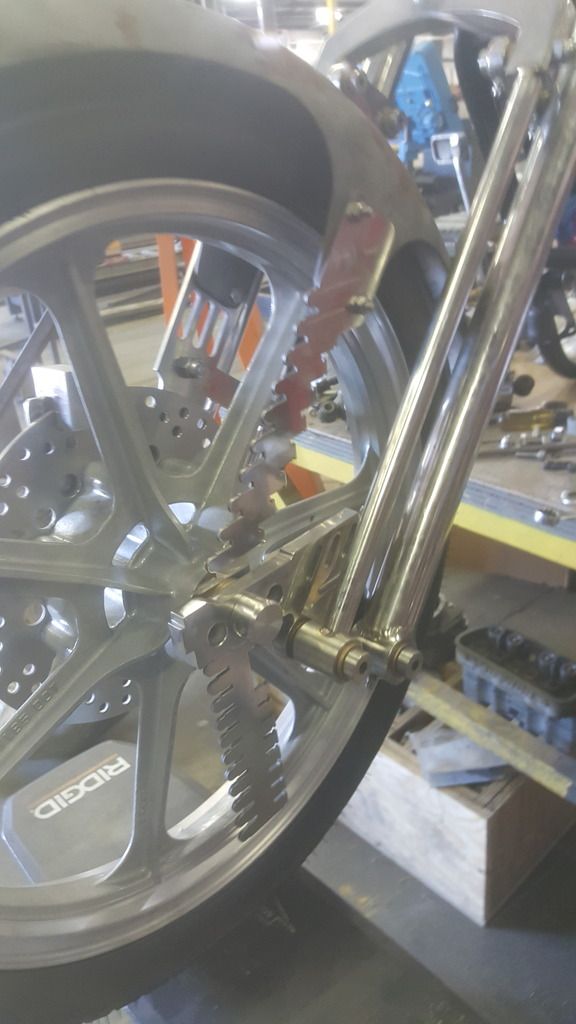

It is finally coming together.
Attachments
Last edited by DeathBySnuSnu on Fri Sep 29, 2017 10:08 pm, edited 1 time in total.

DeathBySnuSnu
Lurker
Posts: 89
Joined: Mon Jan 13, 2014 9:08 pm
SELF INTRODUCTION: A backwoods redneck from way down south.
Own a custom manufacturing company.
Ain't scared to build anything that I can dream up.
Have had a motorcycle since I was 10, 52 now.
Currently ride a handbuilt trike

Re: Front engined VW

Post by DeathBySnuSnu » Mon Dec 26, 2016 10:56 am

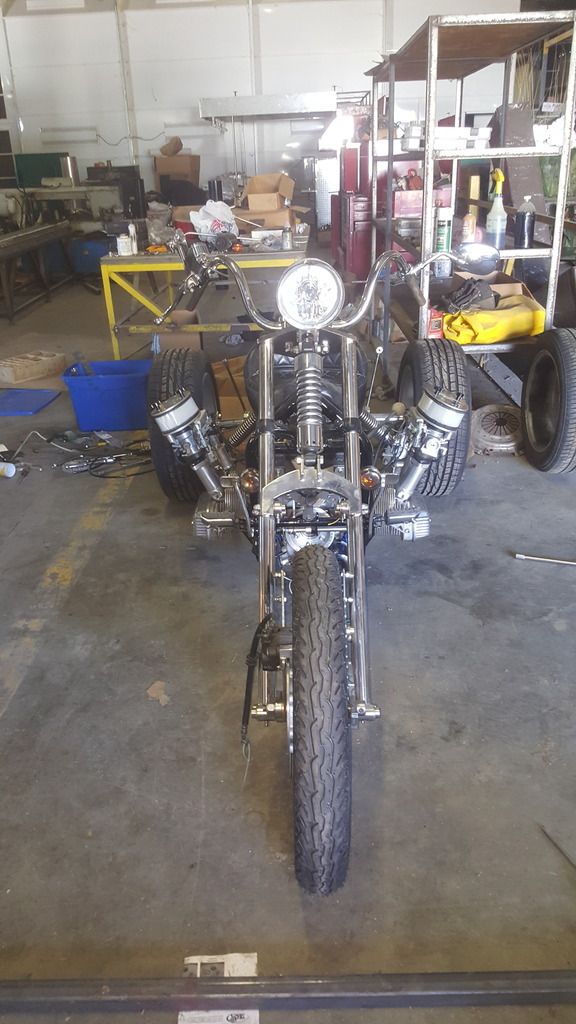

A couple current pics.

DeathBySnuSnu
Lurker
Posts: 89
Joined: Mon Jan 13, 2014 9:08 pm
SELF INTRODUCTION: A backwoods redneck from way down south.
Own a custom manufacturing company.
Ain't scared to build anything that I can dream up.
Have had a motorcycle since I was 10, 52 now.
Currently ride a handbuilt trike

Re: Front engined VW

Post by DeathBySnuSnu » Fri Sep 29, 2017 10:13 pm


DeathBySnuSnu
Lurker
Posts: 89
Joined: Mon Jan 13, 2014 9:08 pm
SELF INTRODUCTION: A backwoods redneck from way down south.
Own a custom manufacturing company.
Ain't scared to build anything that I can dream up.
Have had a motorcycle since I was 10, 52 now.
Currently ride a handbuilt trike

Re: Front engined VW

Post by DeathBySnuSnu » Fri Sep 29, 2017 10:15 pm


DeathBySnuSnu
Lurker
Posts: 89
Joined: Mon Jan 13, 2014 9:08 pm
SELF INTRODUCTION: A backwoods redneck from way down south.
Own a custom manufacturing company.
Ain't scared to build anything that I can dream up.
Have had a motorcycle since I was 10, 52 now.
Currently ride a handbuilt trike

Re: Front engined VW

Post by DeathBySnuSnu » Fri Sep 29, 2017 10:20 pm


User avatar
budoka
Site Admin
Posts: 357
Joined: Thu Jul 21, 2011 12:51 pm
SELF INTRODUCTION: I'm a Kentucky boy who's found himself transplanted into Japan. been into turning wrenches as long as i can remember. i love muscle cars, hotrod bikes, and the martial arts.

been a member of this board since back when it was a part of Chopperweb. been handling the tech side and sharing the admin duties for several years now.
Location: Yamanashi Shi, Japan
Contact:

Re: Front engined VW

Post by budoka » Sat Sep 30, 2017 8:22 am

wow, that thing is wickedly cool. even more so to me since my daily driver is a '69 VW Type 3 Squareback.

looks like the intake manifolds are custom made, and i can't quite tell what the carbs are. Dellorto?

-dan
-experience is a wonderful thing. It enables you to recognize a mistake when you make it again.
http://knuckleheadsummer.blogspot.com/

Jim Sawyer
Tourist
Posts: 40
Joined: Tue Oct 25, 2011 9:59 pm
SELF INTRODUCTION: I first found the chopperbuilders handbook back in 2004. Thanks to the board, and all its members, I was able to build My bike, and have ridden it 25,000 miles. I learned a lot, made some friends, and had a great time building it

Re: Front engined VW

Post by Jim Sawyer » Sat Sep 30, 2017 9:26 am

You have a nice project going on there. One question though, is it hard to get on and off of it with all of the carbs and exhaust located where they are?

DeathBySnuSnu
Lurker
Posts: 89
Joined: Mon Jan 13, 2014 9:08 pm
SELF INTRODUCTION: A backwoods redneck from way down south.
Own a custom manufacturing company.
Ain't scared to build anything that I can dream up.
Have had a motorcycle since I was 10, 52 now.
Currently ride a handbuilt trike

Re: Front engined VW

Post by DeathBySnuSnu » Sat Sep 30, 2017 10:35 am

budoka wrote:
Sat Sep 30, 2017 8:22 am
wow, that thing is wickedly cool. even more so to me since my daily driver is a '69 VW Type 3 Squareback.

looks like the intake manifolds are custom made, and i can't quite tell what the carbs are. Dellorto?

-dan

Ahaaaa....another vw guy huh?
I no longer have a vw car. Well....not entirely true....I do have a 61 Karmen sedan convertible that I want to make a volks rod out of. But it is just a pile right now.

Yes the intakes are fabbed units and no that is not carbs or Dells.
That is 44mm mikuni throttle bodies and Mitsubishi injectors.

This is a 2387 fuel injected distributor less stroker motor.

DeathBySnuSnu
Lurker
Posts: 89
Joined: Mon Jan 13, 2014 9:08 pm
SELF INTRODUCTION: A backwoods redneck from way down south.
Own a custom manufacturing company.
Ain't scared to build anything that I can dream up.
Have had a motorcycle since I was 10, 52 now.
Currently ride a handbuilt trike

Re: Front engined VW

Post by DeathBySnuSnu » Sat Sep 30, 2017 10:40 am

Jim Sawyer wrote:
Sat Sep 30, 2017 9:26 am
You have a nice project going on there. One question though, is it hard to get on and off of it with all of the carbs and exhaust located where they are?
It is more difficult than a standard motorcycle to get onto.
Luckily it is low. When you swing your leg over the seat you just have to continue on over the air cleaner also.
Which in itself is no big deal but by the time you leg is that far out you are past balance point and just plop down on the seat.

User avatar
budoka
Site Admin
Posts: 357
Joined: Thu Jul 21, 2011 12:51 pm
SELF INTRODUCTION: I'm a Kentucky boy who's found himself transplanted into Japan. been into turning wrenches as long as i can remember. i love muscle cars, hotrod bikes, and the martial arts.

been a member of this board since back when it was a part of Chopperweb. been handling the tech side and sharing the admin duties for several years now.
Location: Yamanashi Shi, Japan
Contact:

Re: Front engined VW

Post by budoka » Sat Sep 30, 2017 11:20 am

LOL, if i had just looked a bit closer i should have at least seen that they were injectors. been a long day.

2387 cc in that light frame is gonna be one wild ride for sure! great googly moogly.

i likey.

-dan
-experience is a wonderful thing. It enables you to recognize a mistake when you make it again.
http://knuckleheadsummer.blogspot.com/

DeathBySnuSnu
Lurker
Posts: 89
Joined: Mon Jan 13, 2014 9:08 pm
SELF INTRODUCTION: A backwoods redneck from way down south.
Own a custom manufacturing company.
Ain't scared to build anything that I can dream up.
Have had a motorcycle since I was 10, 52 now.
Currently ride a handbuilt trike

Re: Front engined VW

Post by DeathBySnuSnu » Sat Sep 30, 2017 1:25 pm

It spent a large number of years as a 2110 big head big cam with 44idf clones.
It was quite twitchy with 3.88 ring and pinion.
It wound up putting in a 3.44 ring and pinion, 1.26 third and a .82 fourth. That helped a lot. Before it physically took longer to shift it than it took to pull the gear. Was common to hit valve float before you could stick the next gear. The bigger gears put a little time between shifts.

DeathBySnuSnu
Lurker
Posts: 89
Joined: Mon Jan 13, 2014 9:08 pm
SELF INTRODUCTION: A backwoods redneck from way down south.
Own a custom manufacturing company.
Ain't scared to build anything that I can dream up.
Have had a motorcycle since I was 10, 52 now.
Currently ride a handbuilt trike

Re: Front engined VW

Post by DeathBySnuSnu » Sat Sep 30, 2017 1:34 pm

As this is a motorcycle forum, most of my posting is of the motorcycle nature.
I have not put much of the engine trans vw stuff up here.
If y'all want some pics of the less motorcycle type parts or info on the mechanical I can post that up.
